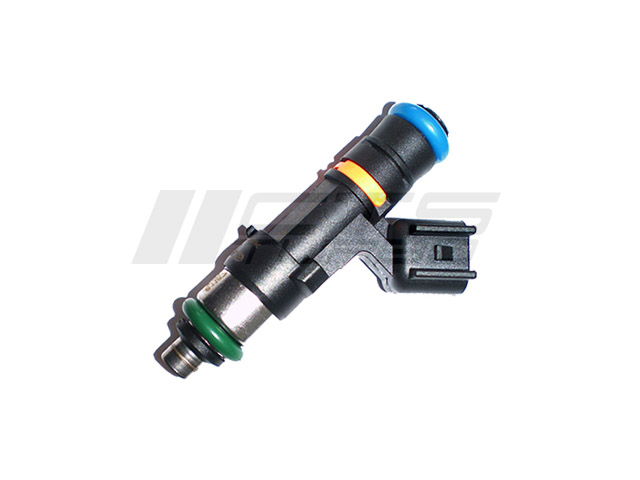

Bosch EV-14 1000cc 95lb Standard Length (Set of 4)

Code: INJ95HB

US$279.96

In Stock
Included Warranty

12 Months
All CTS Turbo products are warrantied against manufacturing defects for a period of 12 months from the date of invoice. Warranty does not cover abuse, misuse, consequential damages, normal wear and tear, improper installation, or damages resulting from racing. Warranties only apply to the original owner. If a product is found defective the customer will receive, at the discretion of CTS Turbo, free repair or replacement. Warranty on other manufacturers will be processed under their terms.

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Bosch 95lb/hour 1000cc with EV6 / USCAR Connector

NOTE: Adapters are required for use in Audi/VW applications.
For use with 1.8T, 2.7T, VR6 and many other vehicles – choose EV14 – EV1 adapter (regular Bosch-style connector)

For use with R32 – choose EV14 to Nippon Type A adapter (oval 2-pin connector)

These injectors flow 95 lbs/hr at 43.5 PSI ( 3 BAR ) and more at higher PSI. In addition, these units are high-impedance. Despite the high flow rate, they are linear and controllable at low pulse widths and have been used in ULEV applications! This allows you to use a larger injector than normally possible without hurting idle and low speed driveability. Adding to the flexibility of application, these units are high-impedance; making them compatible with most ECUs, while delivering the most flow available in a High-Impedance injector. These injectors represent the most current Bosch engineering and are used on many high power oem applications.

These injectors are able to function at high fuel pressures and donÂ’t exhibit the high fuel pressure handling problems found with many other high flow high-impedance injectors. Many tuners push these injectors to 6 bar and higher.

Engine performance and running quality are enhanced through the optimized spray pattern. These High Flow injectors utilize a single orifice tip for improved mixture preparation and atomization. This results in lower BSFC and better idle quality than many injectors with less flow.

Features:
Genuine, reliable modified Bosch Injectors
Excellent response characteristics
Robust Design
High Impedance
Low Impedance performance characteristics with High Impedance Compatibility

Specifications:
Coil Resistance: 12 Ohms (This high-impedance injector will work with all factory ECM/PCM injector drivers)
Spray Pattern: Wide Split Cone, (single orifice)
Electrical Connector: USCAR (New-style V=EV6 / Oval / LS2)
Fitted with Viton upper and lower o-rings.
Static Flow Rate @ 43.5PSI (300kPa): 95 lb/hr = 6.52g/s = 1000cc/min
Overall Length: 65.5mm
Dimensions: 48.5mm o-ring seat to seat, 53.5mm o-ring centerline to centerline

Applications:
Perfect for 2V, 3V and 4V head applications looking for a high flow, wide dynamic range injector with superb idle quality

Additional information

Weight 1 lbs
Dimensions 6 × 6 × 6 in
