CTS TURBO 2.0T FSI EA113 & TSI EA888 INTAKE MANIFOLD W/ WATER METH INJECTION

Code: CTS-HW-0420R
(2 customer reviews)

Original price was: US$799.99.Current price is: US$719.99.

In Stock
Included Warranty

12 Months
All CTS Turbo products are warrantied against manufacturing defects for a period of 12 months from the date of invoice. Warranty does not cover abuse, misuse, consequential damages, normal wear and tear, improper installation, or damages resulting from racing. Warranties only apply to the original owner. If a product is found defective the customer will receive, at the discretion of CTS Turbo, free repair or replacement. Warranty on other manufacturers will be processed under their terms.

Share (6)
Total: 3 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 3

Description

CTS Turbo is proud to announce our intake manifold for Audi/VW 2.0T FSI EA113 and EA888 Gen 1&2.

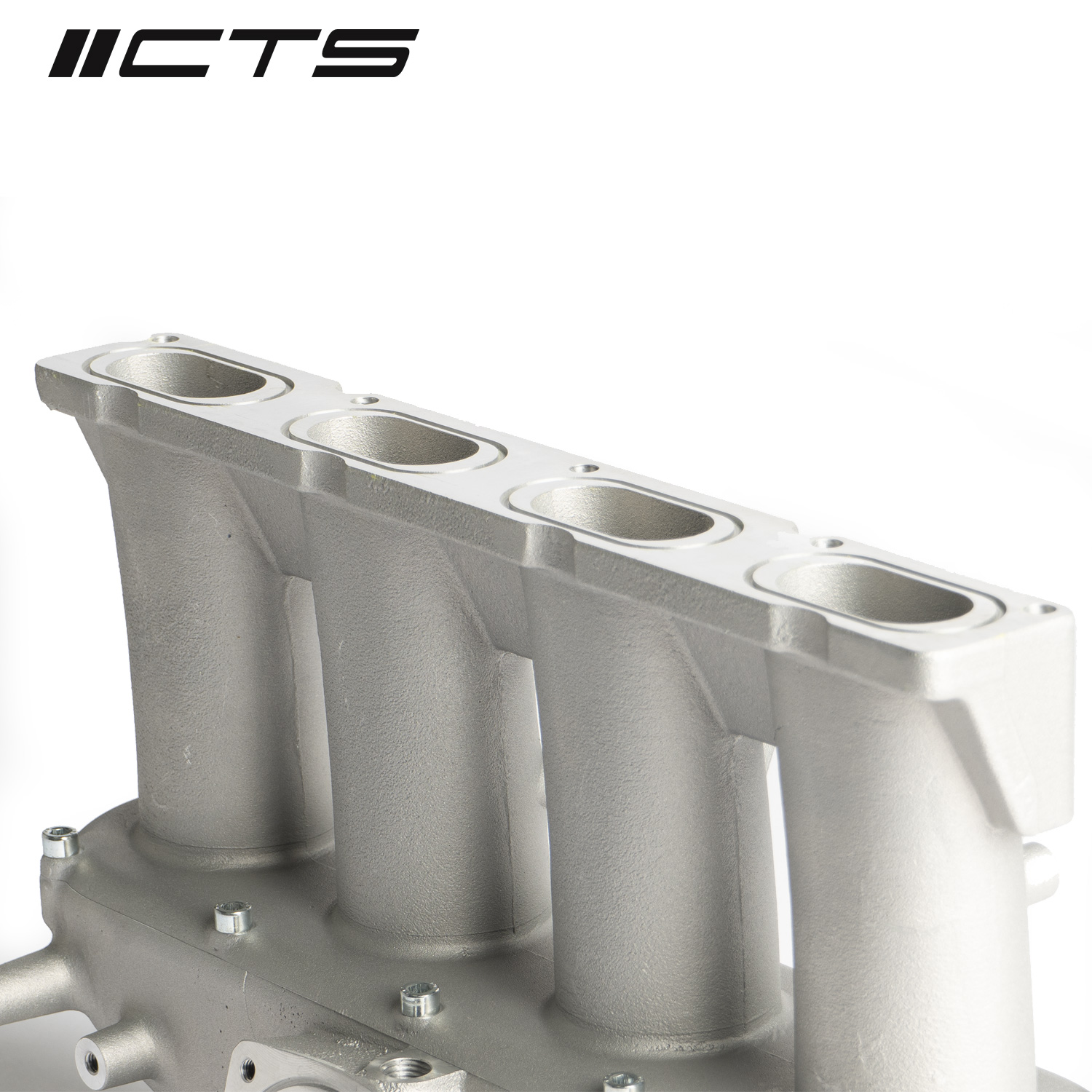

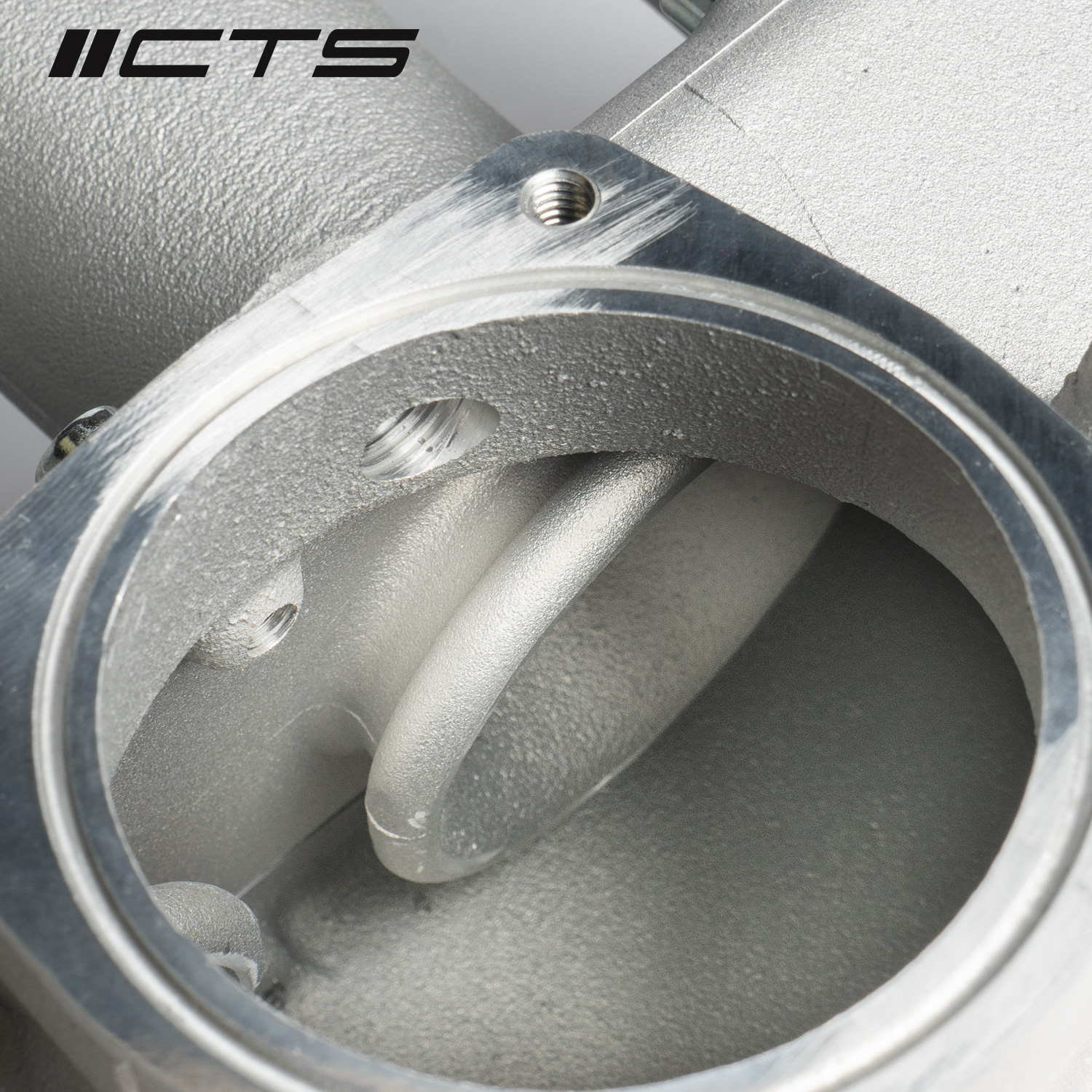

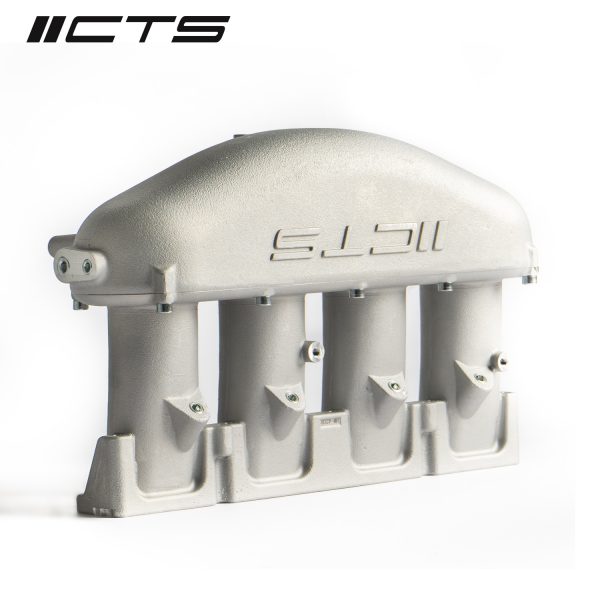

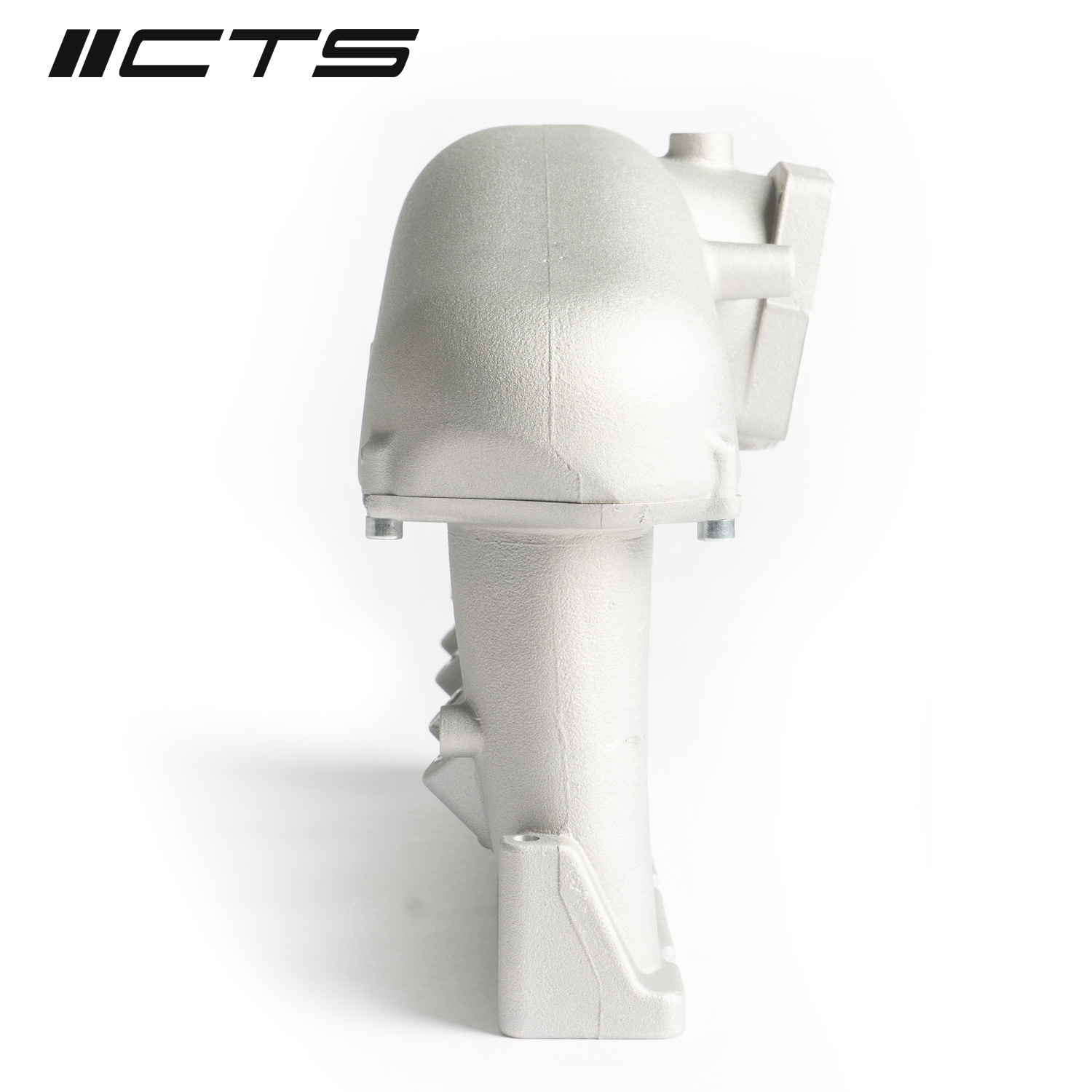

It’s time to take your 2.0T to the next level. Our intake manifold is made of cast aluminum in order to take a lot more boost than the OEM plastic unit. With over 40% more volume and equalized air flow, you can be assured that more power is to be had.

The plenum on our manifold has been greatly increase in size and shaped to distribute airflow as evenly as possible to all cylinders.

Features:

  • For EA113 (timing belt) and EA888.1/EA888.2 (timing chain) engines
  • Approximately 40% more volume than stock
  • Improved turbo spool and increased HP (with use of proper tuning software)
  • Equal flow distribution across all runners
  • Integrated velocity stacks on all runners
  • Retains factory throttle body placement, no adapters required
  • Retains factory mounting posts for accessories and brackets
  • Deletes factory intake flappers
  • 1/8″ NPT ports for water/meth injection – Aquamist 25mm long checkvalved jets (extended tip for MK6 TSI fitment) work well.
  • 1/4″ NPT and 1/8″ NPT ports for vacuum or boost reference

PLEASE NOTE:

  • NOT COMPATIBLE WITH FACTORY PCV SYSTEM, CATCH CAN SYSTEM IS REQUIRED
  • NOT COMPATIBLE WITH B8.5 A4/A5 VEHICLES WITH 5TH FUEL INJECTOR (FACTORY ALUMINUM MANIFOLD) – CPMA Engine code
  • NOT COMPATIBLE WITH MK6 GEN3 TSI ENGINES (2013.5+) – CPLA/CPPA Engine code

SPECIFIC INTAKE MANIFOLD SOFTWARE TUNING IS REQUIRED. SMALL MODIFICATION TO THE FUEL LINE MOUNT IS REQUIRED.

Additional information

Weight 16 lbs
Dimensions 20 × 10 × 12 in

2 reviews for CTS TURBO 2.0T FSI EA113 & TSI EA888 INTAKE MANIFOLD W/ WATER METH INJECTION

  1. Anonymous (verified owner) –

    1 week review! First let me say that I love this manifold. With the manifold tune, I can definitely feel more power and torque. Exhaust pops and bangs so much more clear and louder. Also looks better in the engine bay along with the catch-can kit. Just 2 flaws I found during the installation. B8 A4/A5 owners, be prepare to shave the hell out of the fuel rail mount. It will not fit the manifold. And the supplied o-rings are very small, not sure if it’ll seal correctly as I can see gaps between the manifold and the head. But rtv will be your best friend. That’s what I used. And lastly, no installation guide. I ended up zip tying the vacuum line to a metal bracket somewhere the engine bay. But overall, a very good piece of quality and the price was right. I’m all set up for k04 next!

  2. Rishad Amade –

    A good quality, no doubts of that.
    Unfortunately, Fuel rail mount don’t fit easily, must be trimmed to fit well.
    Missing installation guide.

Add a review

Model

Generation

Make Model Year Generation
Make Model Year Generation
AUDI A3 2006 - 2013 8P
AUDI A4 2005 - 2008 B7
AUDI A4 2009 - 2015 B8/8.5
AUDI A5 2008 - 2015 B8/8.5
AUDI A6 2005 - 2011 C6
AUDI A6 2012 - 2015 C7
AUDI TT 2008 - 2015 8J
AUDI TTS 2008 - 2015 8J
VW CC 2009 - 2015 MK1
VW GOLF R 2012 - 2013 MK6
VW GTI 2006 - 2009 MK5
VW GTI 2010 - 2014 MK6
VW JETTA 2006 - 2010 MK5
VW JETTA 2010 - 2012 MK6
VW JETTA GLI 2006 - 2010 MK5
VW JETTA GLI 2010 - 2012 MK6
VW PASSAT 2006 - 2010 B6
