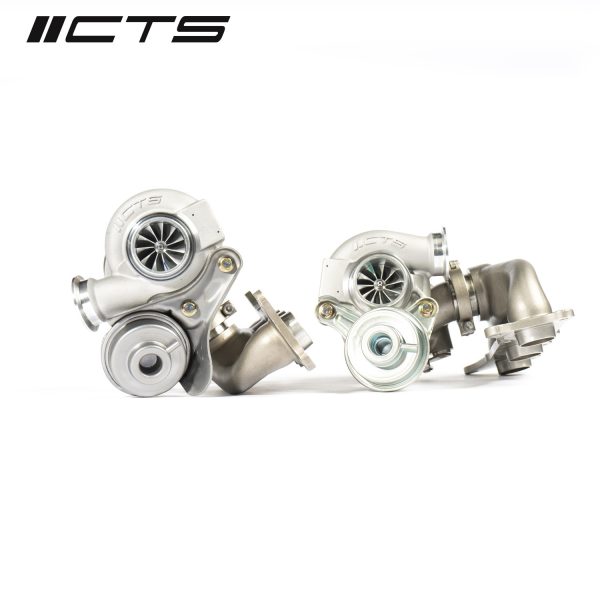

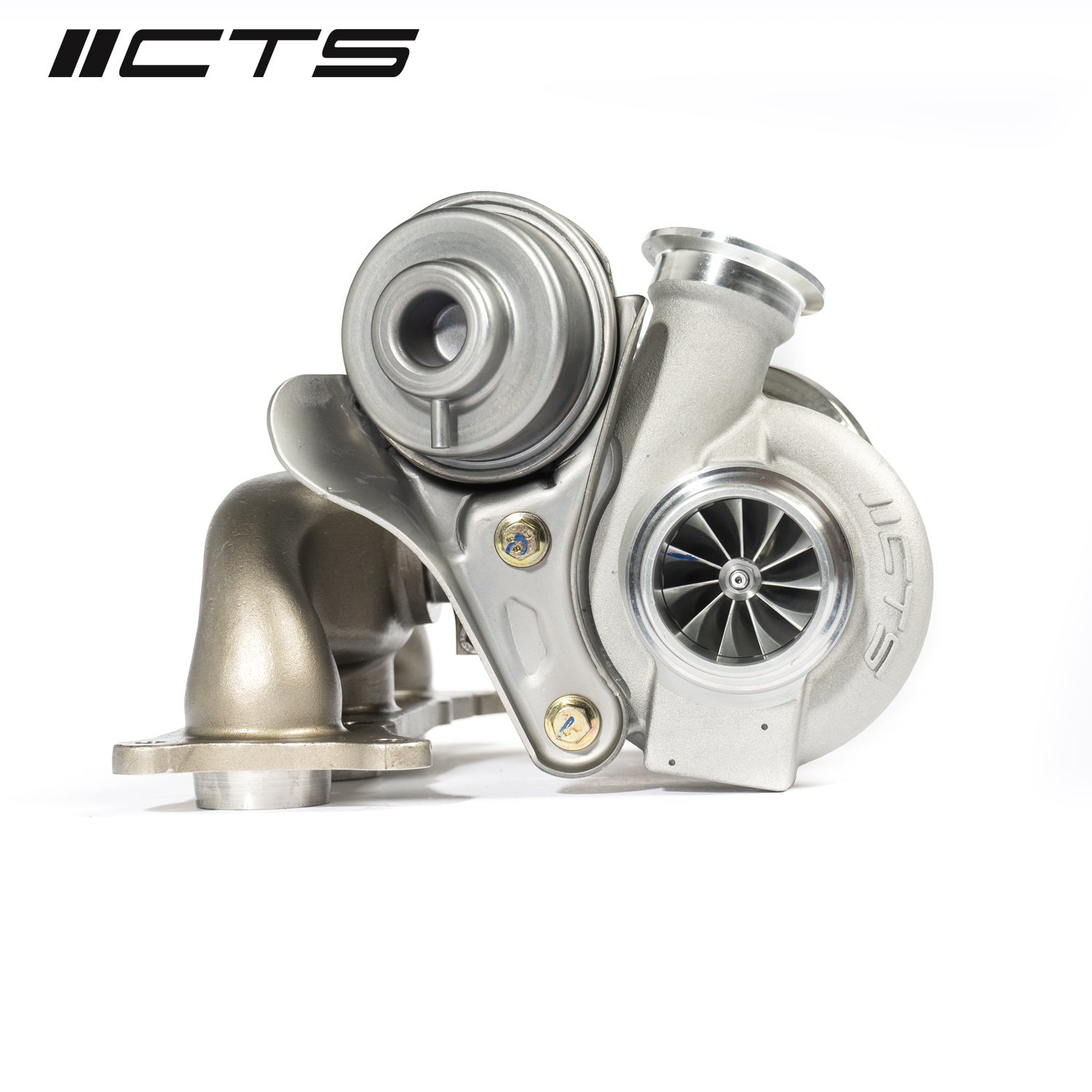

CTS Turbo BMW N54 335i/335xi/335is Stage 2+ “RS” Turbo Upgrade

Description

CTS Turbo is proud to announce our larger Stage 2+ “RS” BMW N54 turbocharger kit. If you looking to get the most power and torque out of your N54 before going single turbo this is the kit for you!

The best part? These are brand-new complete units, no core or wait time is needed.

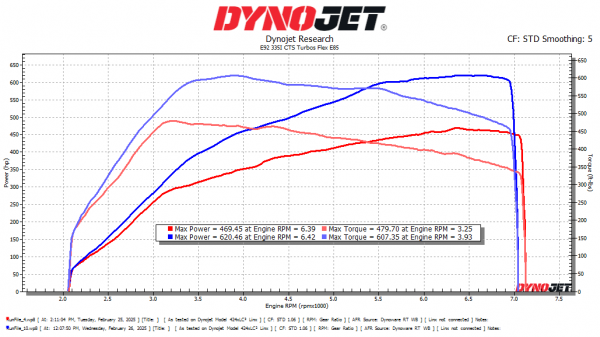

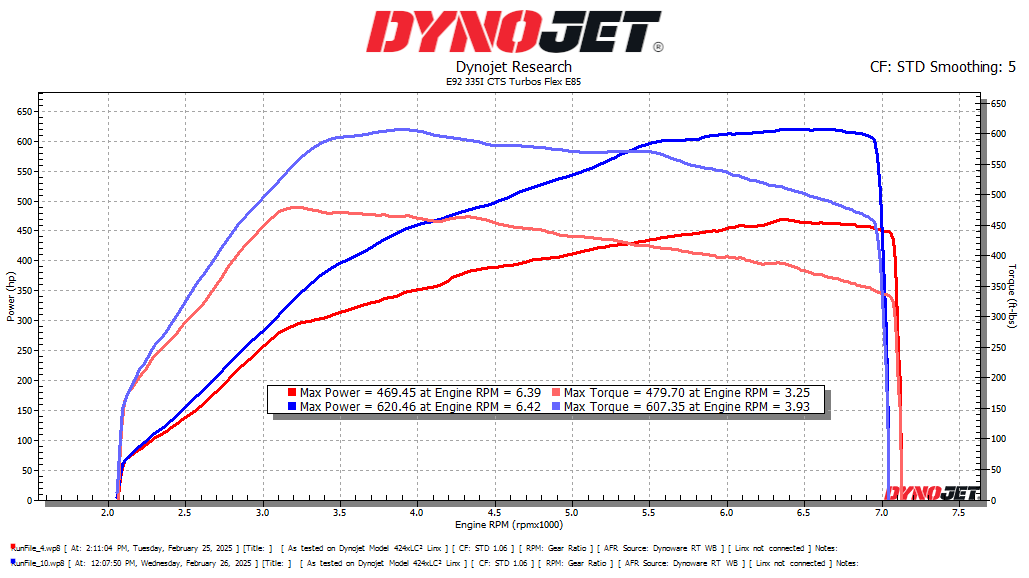

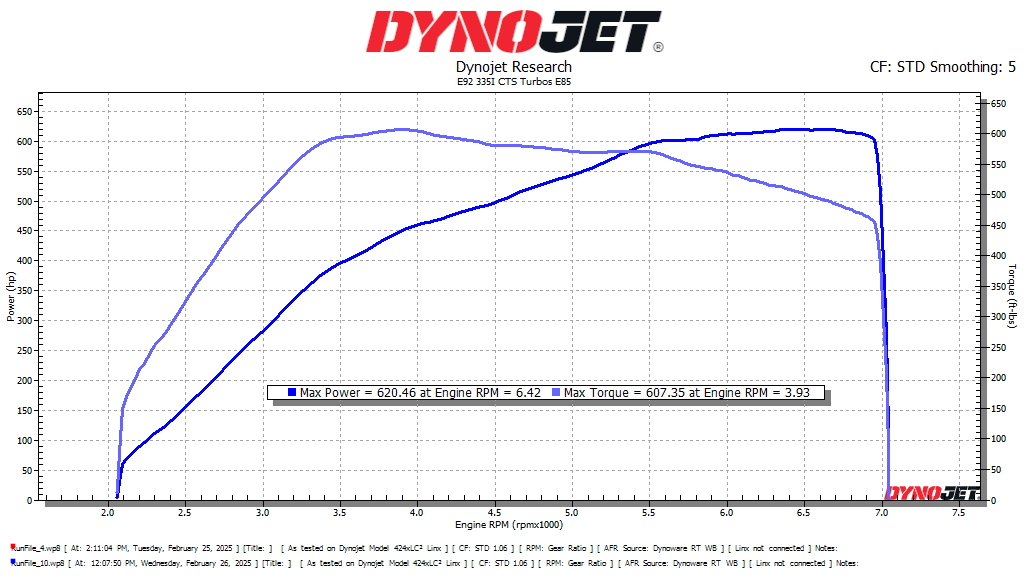

Using larger wheels than stock these turbos are good for 600-700hp, with a really noticeable mid-high RPM performance..

Features:

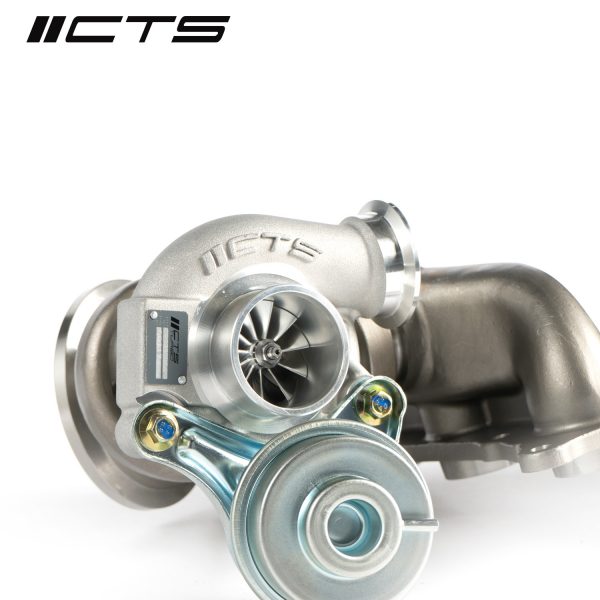

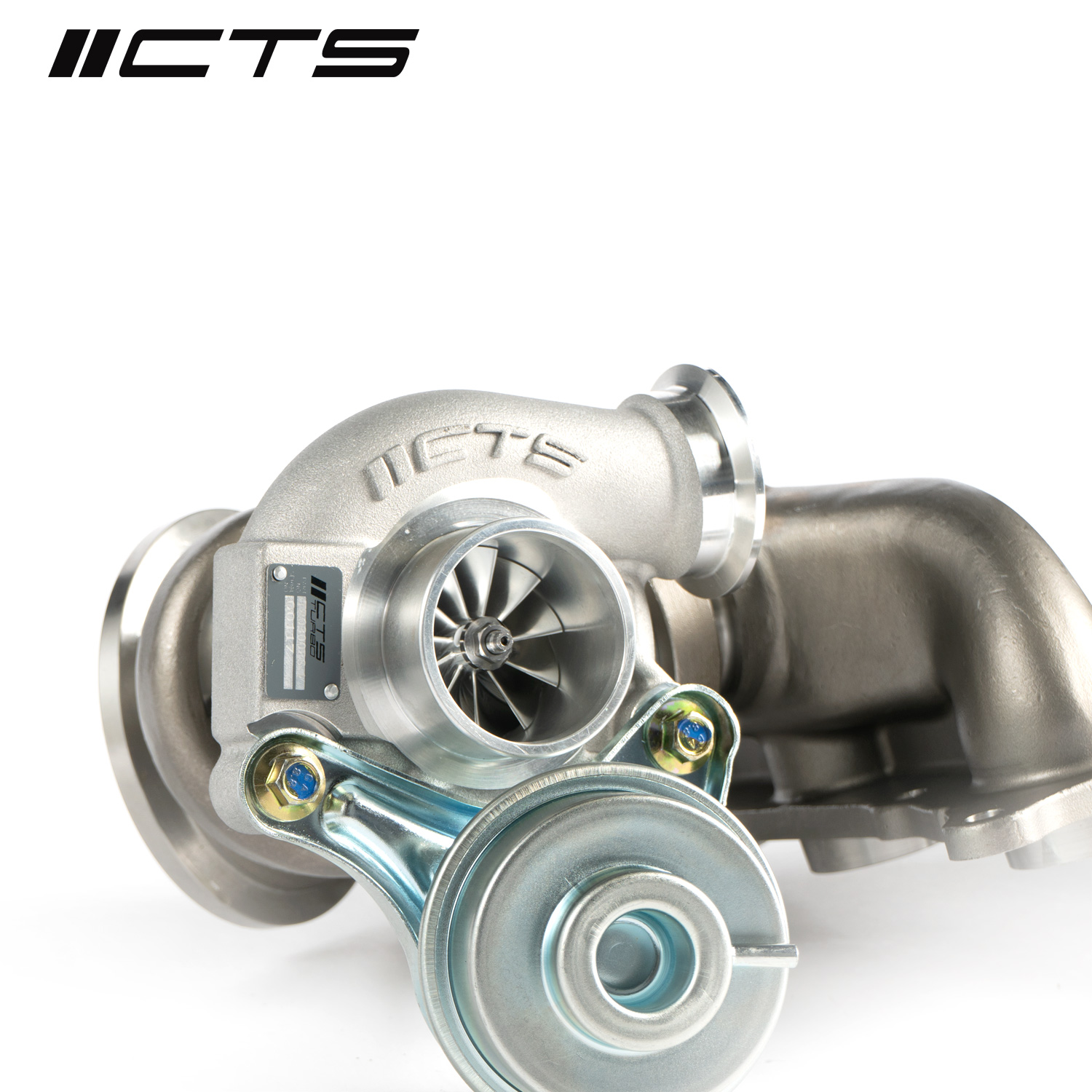

• TD04-16T 43.5/56mm 11-blade billet compressor wheel

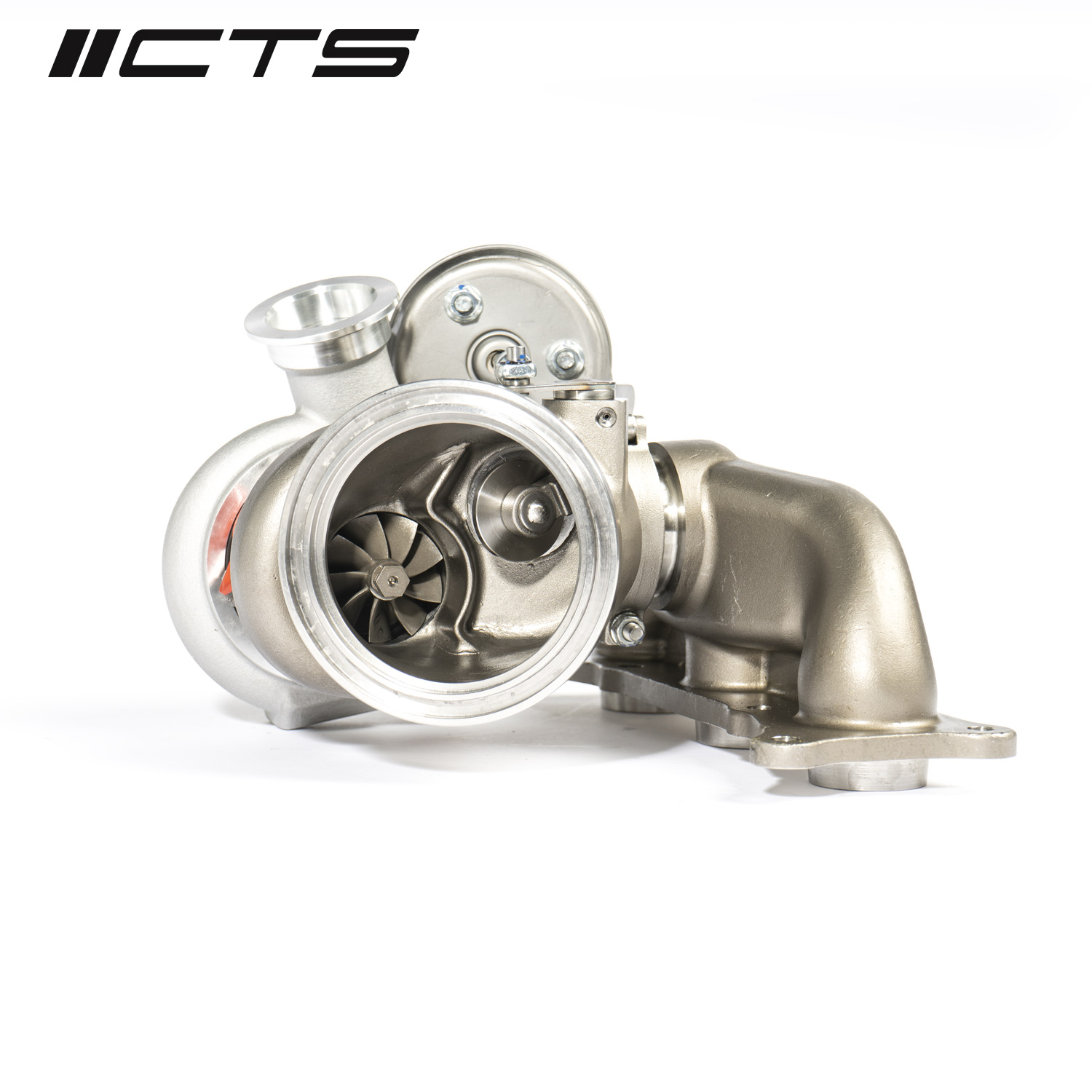

• 9-blade high-flow 41.2/47.2mm TD04L turbine wheel
• TD04 upgraded thrust bearings

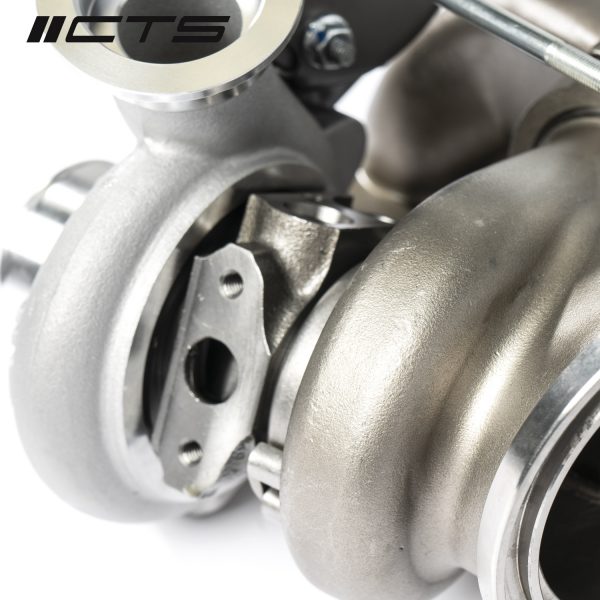

• Flow-optimized stainless steel exhaust manifold and housing
• Bolt-on fitment, compatible with any downpipes and charge pipes
• 2″ compressor covers (require aftermarket inlets)
• Gasket and o-ring kit included
• Tuning for Stage 2+ turbos is required
• No core required, complete new units

Installation parts included:

• Manifold Gasket Ring –  11627558906 – QTY 6
• Turbo to Downpipe Gasket – 18307553601 – QTY 2
• Turbo Oil and Coolant Line O-Ring – 11427558936 – QTY 6
• Turbo Oil Return Gasket – 11422246091 – QTY 2
• Charge pipe O-Ring – 13717568030 – QTY 2

Fitment: N54 LHD ONLY* This will NOT fit right hand drive vehicles.

• 2006–2010 E90/E91/E92/E93 335i
• 2007–2010 E60/E61 535i
• 2007–2010 E82/E88 135i
• 2008–2010 E71 X6 xDrive35i
• 2009–2016 E89 Z4 sDrive35i
• 2008–2012 F01 740i
• 2011–2013 E92/E93 335is
• 2011 E82 1 Series M Coupe
• 2011–2016 E89 Z4 sDrive35is

If installing on a BMW 135i, BMW 535i or BMW Z4 you will need this BMW upper rear coolant line: 11537558902 for rear turbo to fit.

Aftermarket charge pipe with BOV is strongly recommended. Oil feed lines, oil filter and engine oil MUST be replaced, in order to maintain warranty. Break-in procedure must be followed in order to maintain warranty.
