CTS Turbo Connecting Rods VW & Audi 144×20 Rifle Drilled | Fits 1.8T 20V & 2.0T FSI

Code: CTS-CRH-14420

Original price was: US$399.99.Current price is: US$359.99.

In Stock
Included Warranty

12 Months
All CTS Turbo products are warrantied against manufacturing defects for a period of 12 months from the date of invoice. Warranty does not cover abuse, misuse, consequential damages, normal wear and tear, improper installation, or damages resulting from racing. Warranties only apply to the original owner. If a product is found defective the customer will receive, at the discretion of CTS Turbo, free repair or replacement. Warranty on other manufacturers will be processed under their terms.

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

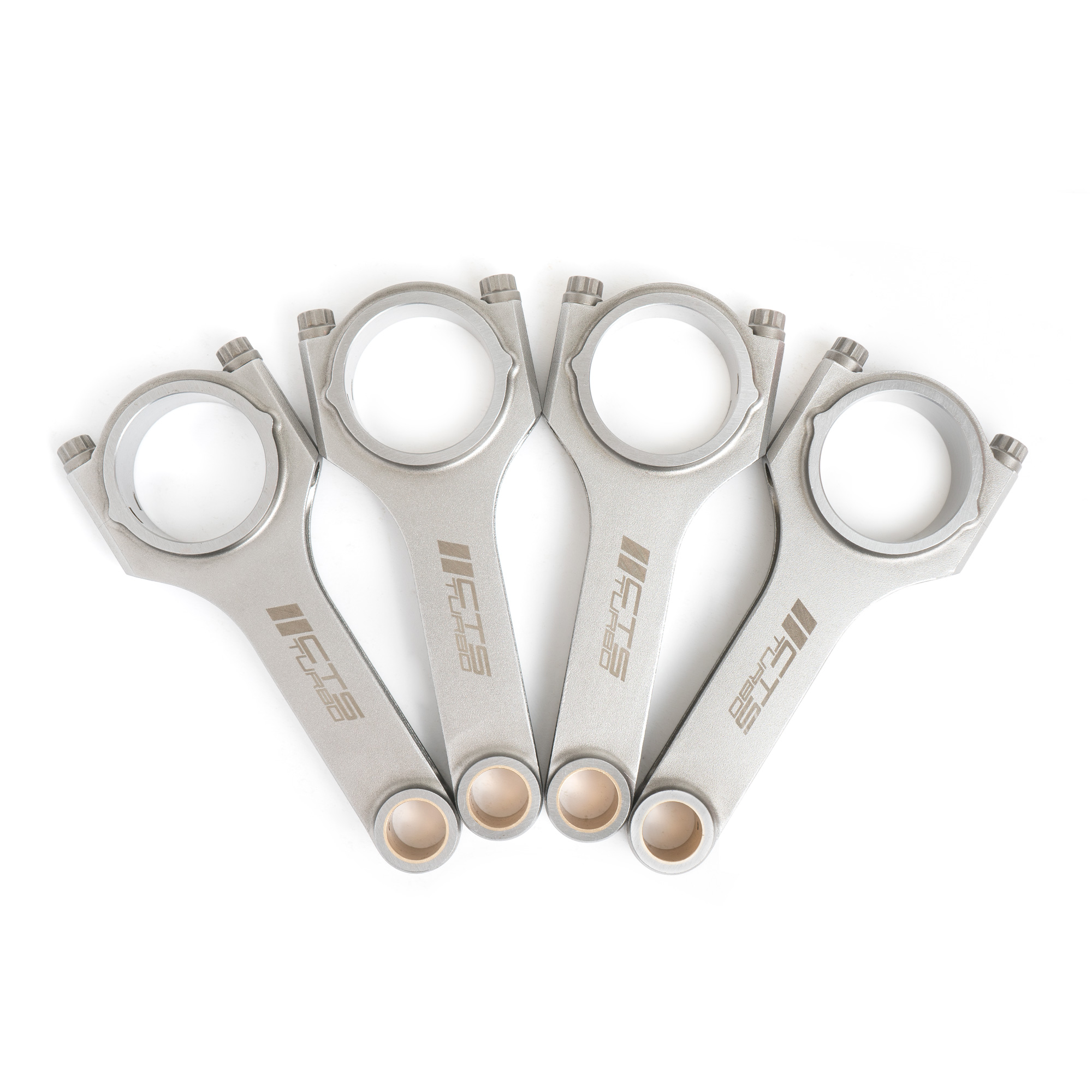

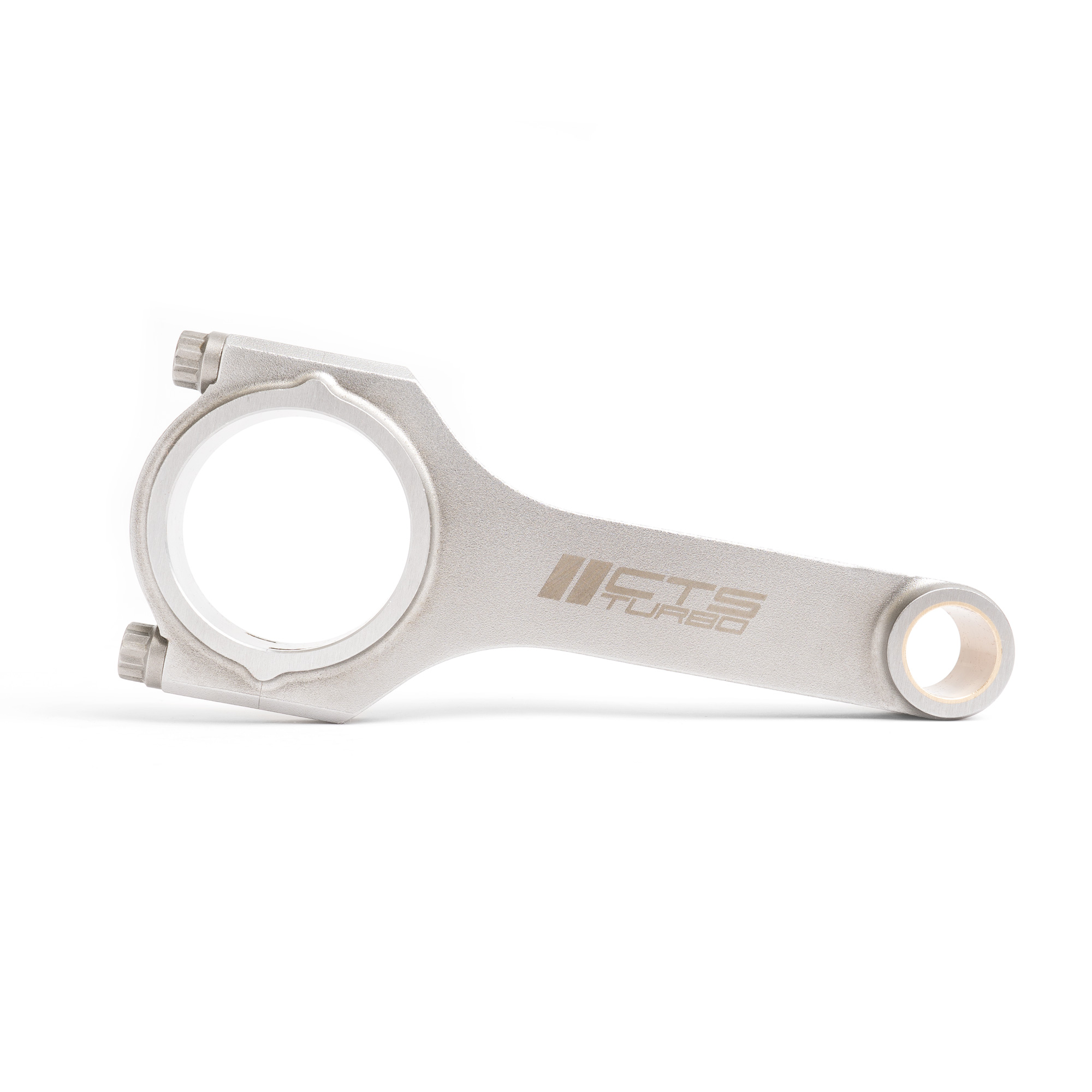

We are excited to announce our 144×20 rifle drilled drop-in connecting rods for 1.8T 20V & 2.0T FSI. Our connecting rods have been engineered for larger turbo and boost applications while maintaining reliability.

This is a set of four (4) 144×20 non-tapered connecting rods. These rods are meant to be used with aftermarket pistons that have 20mm wrist pins.

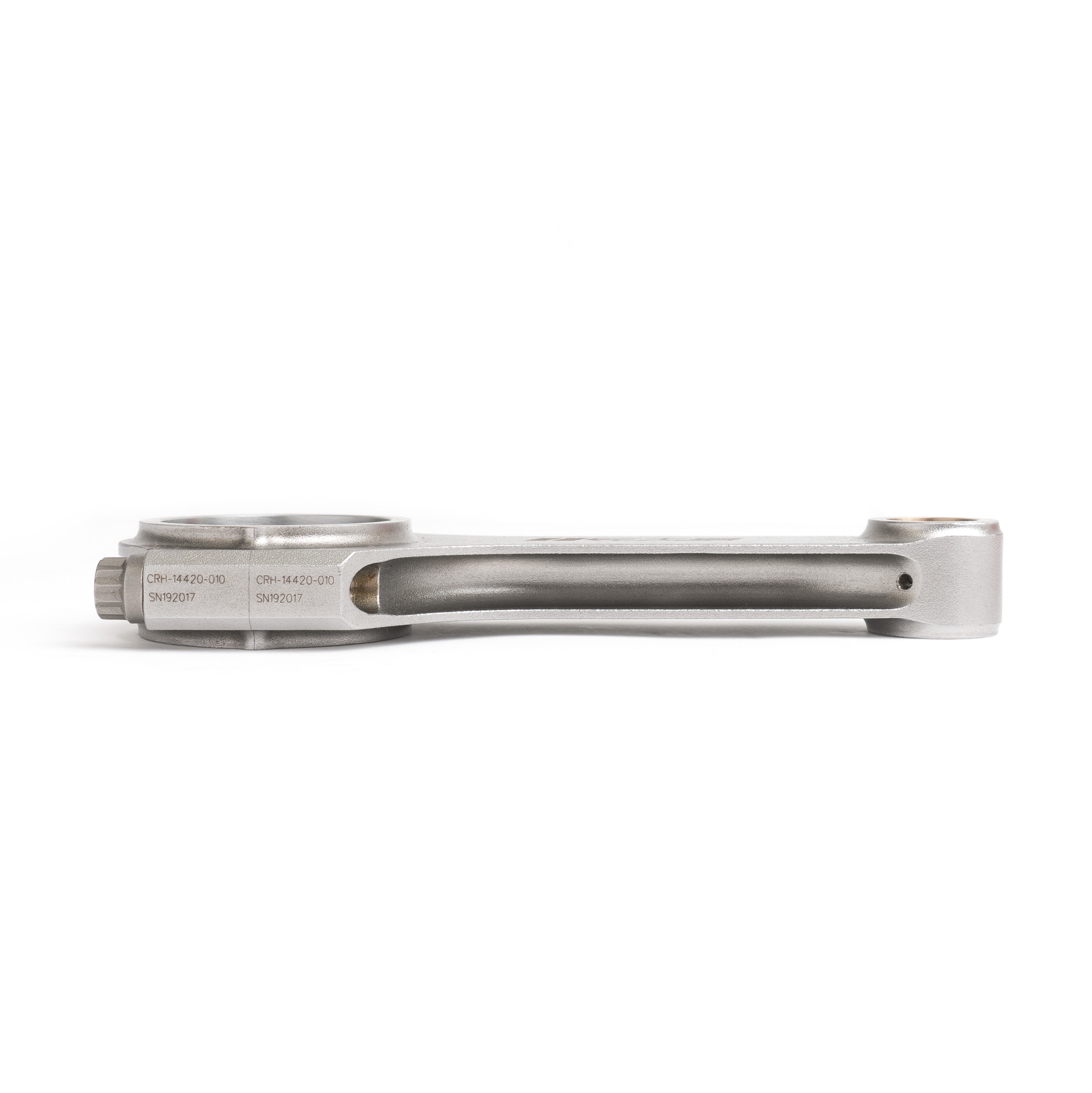

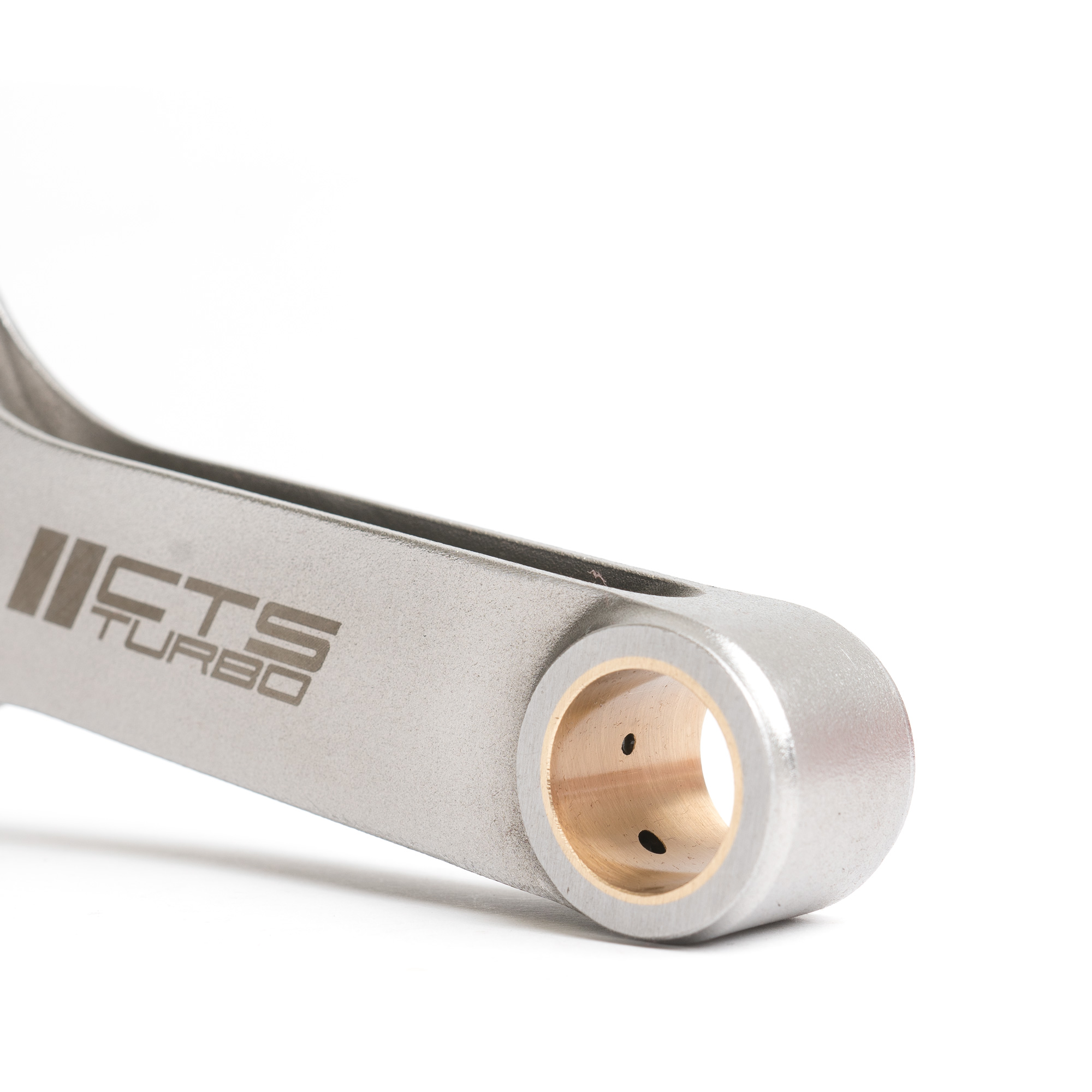

Rifle Drilled

All CTS connecting rods are rifle drilled as standard.

Honing

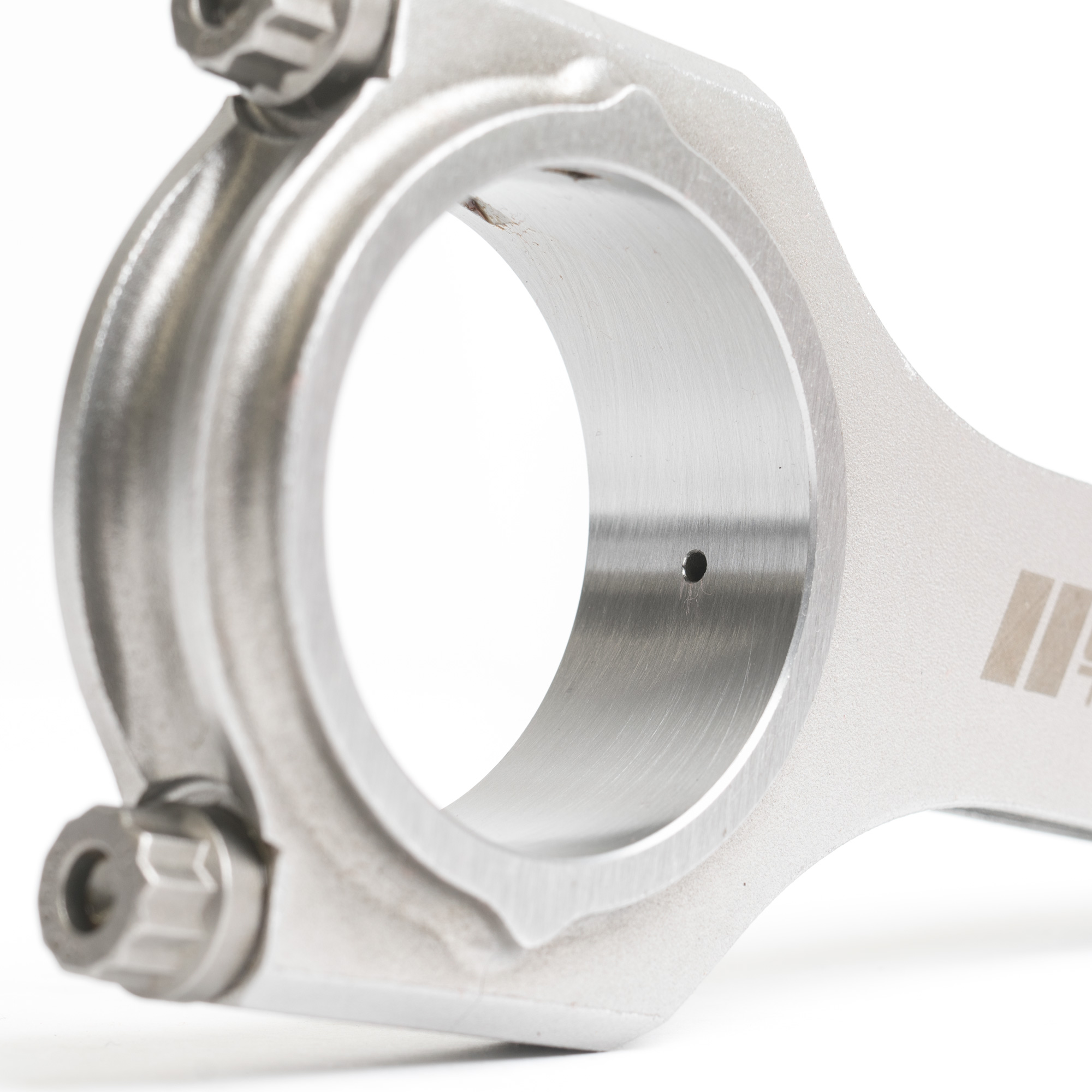

All big and small end bores are honed in house on precision equipment to exacting tolerances.

Quality Control

All connecting rods are put through a stringent quality control process including measuring all critical dimensions on our state of the art CMM (coordinate measuring machine). All connecting rods are matched in weights +/- 1 gram.

ARP Bolts

All CTS Turbo connecting rods come standard with genuine ARP 2000 rod bolts.

Product Specifications

  • Center to Center: 144mm
  • Wrist Pin Diameter: 20mm
  • Big End Journal Width: 24.90mm
  • Wrist Pin Style: Non-tapered, for aftermarket pistons only
  • Big End Journal Diameter: 50.60mm
  • Rod Bolt Dimensions: 3/8″

Fitment

  • Audi – A4 1996-2001 (B5 – B5.5) 1.8T 20V 058 & 06A engines
  • Audi – A4 2002-2005 (B6) 1.8T 20V engines
  • Audi – A4 2005-2008 (B7) 2.0T FSI EA113 engines
  • Audi – A6 1998-2004 (C5) 1.8T 20V engines
  • Audi – A6 Allroad 1998-2004 (C5) 1.8T 20V engines
  • Audi – A6 2005-2011 (C6) 2.0T FSI EA113 engines
  • Audi – A6 Allroad 2005-2011 (C6) 2.0T FSI EA113 engines
  • Audi – TT 2000-2006 (MK1 – 8N) 1.8T 20V engines
  • Audi – TT 2008-2015 (MK2 – 8J) 2.0T FSI EA113 engines (timing belt driven engines only)
  • Audi – TTS 2008-2015 (MK2 – 8J) 2.0T FSI EA113 engines
  • Audi – A3 1996-2003 (MK1 – 8L) 1.8T 20V engines
  • Audi – S3 1996-2003 (MK1 – 8L) 1.8T 20V engines
  • Audi – A3 2006-2013 (MK2 – 8P) 2.0T FSI EA113 engines (timing belt driven engines only)
  • Audi – S3 2006-2013 (MK2 – 8P) 2.0T FSI EA113 engines
  • VW – Golf 1993-1999.5 (MK3) 2.0L 8V engines & 2.0L 16V ABF engines
  • VW – Golf 1999-2005 (MK4) 1.8T 20V engines & 2.0L 8V engines
  • VW – GTI 1999-2005 (MK4) 1.8T 20V engines
  • VW – GTI 2006-2009 (MK5) 2.0T FSI EA113 engines (timing belt driven engines only)
  • VW – Golf R 2012-2012 (MK6) 2.0T FSI EA113 engines
  • VW – Corrado 1988-1995 (A3) G60 & 2.0L 16V ABF engines
  • VW – Jetta 1993-1999 (MK3) 2.0L 8V & 2.0L 16V ABF engines
  • VW – Jetta & Jetta GLI 1999-2005 (MK4) 1.8T 20V & 2.0L 8V engines
  • VW – Jetta & Jetta GLI 2006-2010 (MK5) 2.0T FSI EA113 engines (timing belt driven engines only)
  • VW – Beetle 1998-2011 (1C – 9C – 1Y) 1.8T 20V, 2.0L 8V engines, & 2.0T FSI EA113 engines (timing belt driven engines only)
  • VW – Passat 1998-2005 (B5 – B5.5) 1.8T 20V 058 & 06A engines
  • VW – Passat 2006-2010 (B6) 2.0T FSI EA113 engines (timing belt driven engines only)
  • VW – EOS 2006-2015 (1F7) 2.0T FSI EA113 engines (timing belt driven engines only)

Additional information

Weight 12 lbs
Dimensions 12 × 8 × 6 in

SPECS

TECHNICAL SPECIFICATIONS

ABCD

144MM

50.6MM20MMARP 2000

INSTALL SUPPORT

Verify Clearances



Before installing your CTS connecting rods it is recommended you measured all the critical clearances. Make sure to record the measurements for each rod and number match them to the bearing set, crankshaft journal, and wrist pins.

** You must use a quality bore gauge and micrometer, record the following measurements:**

  • Wrist pin diameter
  • Wrist pin bushing bore
  • Wrist pin clearance (Bore minus diameter
  • Rod journal (w/bearings)
  • Crankshaft journal diameter
  • Journal clearance



Torque Specifications

STEP 1 -PRE-TORQUE:

Before you final stretch the rod bolts, it’s important the bolt and rod threads are fully seated.

  • Install rod bearings
  • Align matching printed numbers on rod and cap
  • Assemble cap to rod
  • Apply ARP assembly lube to bolt threads
  • Hand tighten bolts
  • Using a quality calibrated torque wrench, torque bolts to 50 ft/lbs
  • Break bolts loose, and again torque to 50 ft/lbs
  • Break bolts loose, then torque to 50 ft/lbs one final time

STEP 2 -FINAL TORQUE:
The final torque spec is .006″ (stretch gauge) or 50 ft/lbs (torque wrench) with ARP assembly lube. The preferred method of measuring bolt load is with a stretch bolt gauge.

Stretch Gauge

  • Loosen bolt and zero stretch gauge
  • Tighten bolt to .006″ stretch
  • Loosen second bolt and zero stretch gauge
  • Tighten second bolt to .006″ stretch

Torque Wrench

  • Loosen bolt
  • Tighten bolt to 50 ft/lbs
  • Loosen second bolt
  • Tighten second bolt to 50 ft/lbs

Important notes

  • Do not exceed rod bolt stretch/torque. If bolt stretch is exceeded, replace rod bolts with new ones.
  • Torque wrench settings are given as a guide only, to ensure proper bolt installation a stretch gauge is required.
  • Do not install bolts dry or with any other lubricant than the supplied ARP assembly lube.
