CTS Turbo FRONT Subframe Bushing Insert Kit: MK5/MK6/8P Audi A3 with ARP Bolts

Code: CTS-HW-036-ARP

Original price was: US$139.99.Current price is: US$118.99.

In Stock
Included Warranty

12 Months
All CTS Turbo products are warrantied against manufacturing defects for a period of 12 months from the date of invoice. Warranty does not cover abuse, misuse, consequential damages, normal wear and tear, improper installation, or damages resulting from racing. Warranties only apply to the original owner. If a product is found defective the customer will receive, at the discretion of CTS Turbo, free repair or replacement. Warranty on other manufacturers will be processed under their terms.

Share (1)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 1

Description

CTS Turbo is proud to announce our new billet subframe bushing insert kit (applications listed below).  This kit is designed to eliminate the clunk that is commonly found on MK5’s and MK6’s due to the stretching of OEM bolts stretching and failing.  Our kit will repair the OEM TSB for the clunk correctly by reducing the large factory tolerances at the subframe mounting points.
Features:
  • Interlocking subframe shims center the front subframe to the body
  • Machined in house from T6061 Billet aluminum
  • OE replacement stretch bolts (4) and upgraded ARP bolts (2)
  • Eliminates subframe clunks and shifting

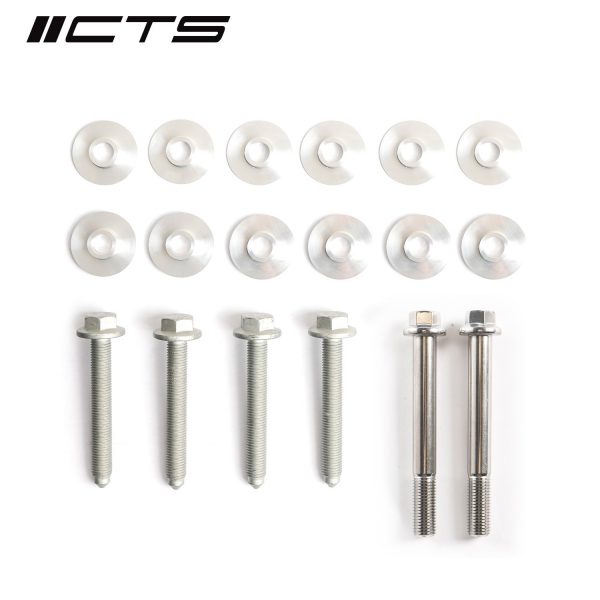

Kit Components:
  • 6 x Upper Insert
  • 6 x Lower Insert
  • 4 x Short OE Bolts

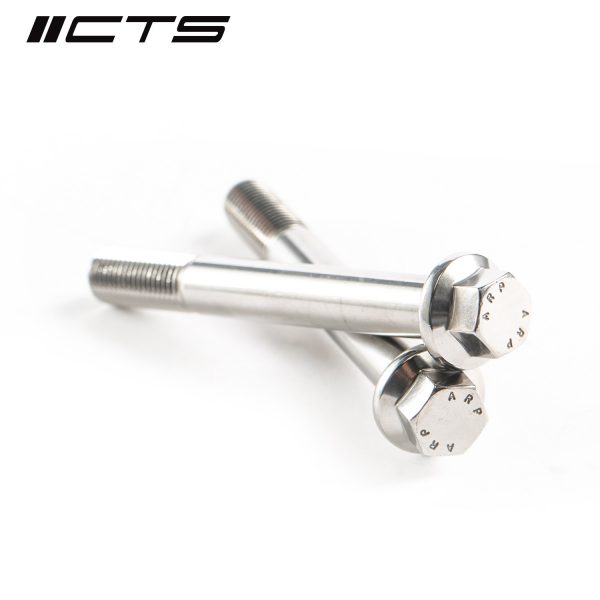

  • 2 x  ARP Long Bolts

Torque specs:

  • ARP bolts = 85Nm (can be re-used)
  • 18mm bolts = 70Nm+180deg (do not re-use)
  • 16mm bolts = 50Nm + 90deg (can be re-used once)
  • 13mm bolts = 20Nm + 90deg (can be re-used once)

Fitment:

  • MK5 GTI/GLI/R32/Jetta/Rabbit
  • MK6 GTI/Golf R/Golf – Aluminum Subframe only, will not fit Jettas with steel subframe
  • 8P Audi A3/S3
  • B6 Passat/Passat CC

Note: wheel alignment required after installation.



Additional information

Weight 2 lbs
Dimensions 8 × 8 × 8 in

Reviews

There are no reviews yet

Be the first to review “CTS Turbo FRONT Subframe Bushing Insert Kit: MK5/MK6/8P Audi A3 with ARP Bolts”

Model

Generation

Make Model Year Generation
Make Model Year Generation
AUDI A3 2006 - 2013 8P
VW CC 2009 - 2017 MK1
VW GOLF 2006 - 2009 MK5
VW GOLF 2010 - 2014 MK6
VW GOLF R 2012 - 2013 MK6
VW GOLF R32 2008 MK6
VW GTI 2006 - 2009 MK5
VW GTI 2010 - 2014 MK6
VW JETTA 2005 - 2010 MK5
VW JETTA 2011 - 2016 MK6
VW JETTA GLI 2006 - 2010 MK5
VW JETTA GLI 2011 - 2016 MK6
VW PASSAT 2006 - 2010 B6
