Garrett GT1749V Turbo Upgrade for VW 1.9L TDI

Description

/* Style Definitions */ table.MsoNormalTable {mso-style-name:”Table Normal”; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-noshow:yes; mso-style-priority:99; mso-style-qformat:yes; mso-style-parent:””; mso-padding-alt:0in 5.4pt 0in 5.4pt; mso-para-margin-top:0in; mso-para-margin-right:0in; mso-para-margin-bottom:10.0pt; mso-para-margin-left:0in; line-height:115%; mso-pagination:widow-orphan; font-size:11.0pt; font-family:”Calibri”,”sans-serif”; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-fareast-font-family:”Times New Roman”; mso-fareast-theme-font:minor-fareast; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-bidi-font-family:”Times New Roman”; mso-bidi-theme-font:minor-bidi;}

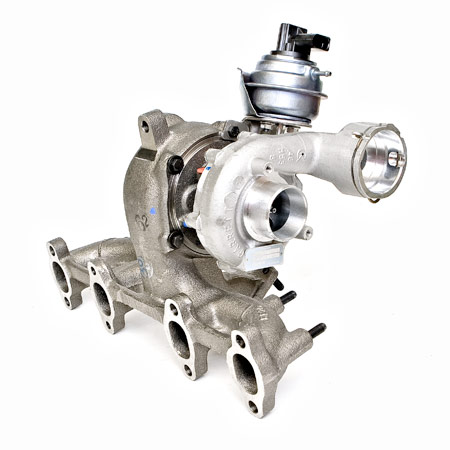

This is the Garrett GT1749V performance upgrade/replacement turbocharger for Volkswagen 1.9L TDI. From stock 100whp & 177 ft.lbs to 175whp & 250 ft.lbs torque with proper fueling/tuning. Directly fits on engines with BEW engine code (and possible others). 2003.5 – 2006 Volkswagen Beetle, 2003.5 – 2006 Volkswagen Golf, 2003.5 – 2005 Volkswagen Jetta.

Product specifications:

2003.5 – 2006 Volkswagen Beetle
2003.5 – 2006 Volkswagen Golf
2003.5 – 2005 Volkswagen Jetta

The Garrett® GT1749V is the first performance upgrade / replacement turbocharger available to the Aftermarket for Volkswagen 1.9L TDI BEW Engines. The GT1749V comes equiped with a smart actuator, an industry exclusive, and a position sensor, which enables the turbocharger to communicate automatically with the Engine Control Unit (ECU). The kit is easy to install and suitable as a performance upgrade or replacement turbocharger. The Garrett VW TDI Kit also promotes a longer turbo and engine life span and increased reliability by lowering exhaust gas temperatures.

Includes the Latest Technology Tailored to Your Diesel Performance Needs:

• Garrett® patented Variable Nozzle Turbine (VNTTM) design
• GT wheel aerodynamics

Featuring:

• Increased compressor flow over stock
• Can support up to estimated 175hp
• Turbine, compressor and oil connections fit with no modifications
• Includes smart actuator with position sensor (separate EGR adaptor tube required)
• Highest performance, durability and reliability in the industry

Replaces:

• Volkswagen OE Part Numbers: 038 253 019 S & 038 253 014 E Model: KP39 (3K)

*Estimated results. Actual figures will vary with tuning and fuel system upgrades.

Installation Instructions Download:

Installation Instructions
