iABED Industries Billet Aluminum VW/AUDI Rear Main Seal 462103171A

Code: 462-109-171A

US$99.99

In Stock
Included Warranty

12 Months
All CTS Turbo products are warrantied against manufacturing defects for a period of 12 months from the date of invoice. Warranty does not cover abuse, misuse, consequential damages, normal wear and tear, improper installation, or damages resulting from racing. Warranties only apply to the original owner. If a product is found defective the customer will receive, at the discretion of CTS Turbo, free repair or replacement. Warranty on other manufacturers will be processed under their terms.

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

iABED Industries is known for designing and manufacturing a patented solution to solve the leaking rear main seal for the EA888.X line of motors. Since it’s release, requests have come in for the older line up of water cooled engines dating back to 1978. Finally a solution has arrived.

By using a double tongued spring loaded seal installed in a billet housing, iABED Industries has developed an upgraded solution to permanently fix your rear main seal.

Compatible from 1978 till 2009 Volkswagen/Audi/Seat/Skoda or a 2012 VW Golf R / Audi TTS / Seat Leon Cupra R with an EA113.

This is a replacement to the following OEM Part Numbers:

  • 026103171A
  • 034103171A
  • 06A103171A

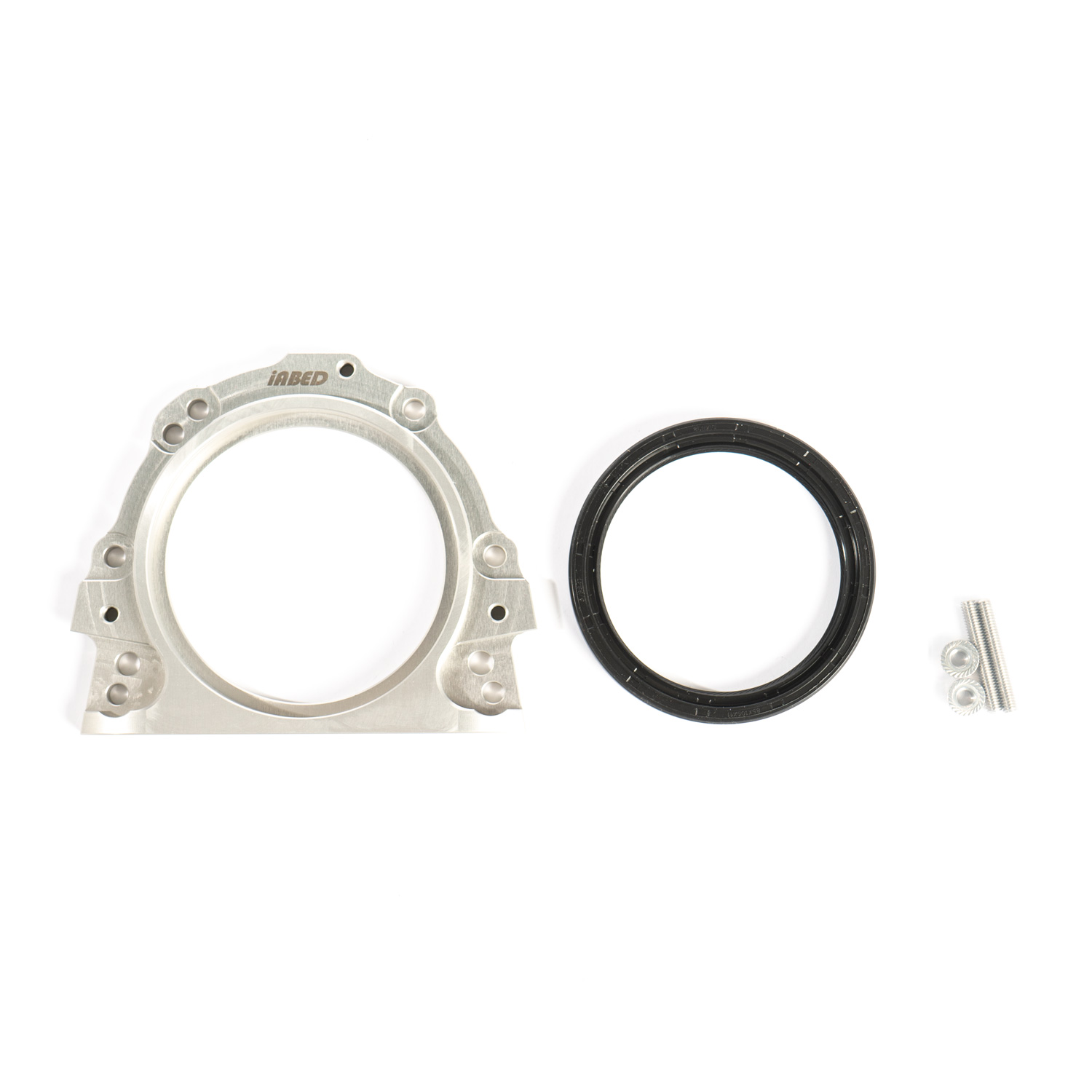

Included in each package:

  • (1) iABED VW827 T6061 Machined Rear Main Seal holder
  • (1) Elring spring Loaded rear main seal
  • (2) M6 x 1.0 x 40mm set screw
  • (2) M6 x 1.0 flanged nut

Note: This does not work on the 2.0 TDI engine that has a built in impulse wheel (03L103171A)





Additional information

Weight 3 lbs
Dimensions 8 × 8 × 8 in
